Comparison table

 PD-110ALRS-35-12LRS-35-36RS-15-12RSD-150B-24RSD-150C-5SD-100C-24

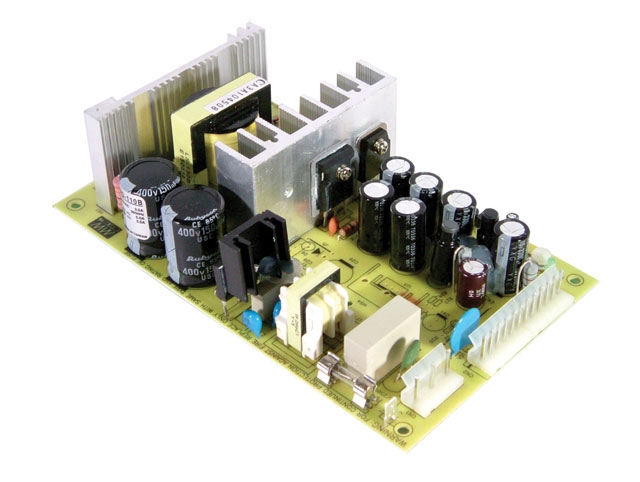

MEAN WELL PD-110A

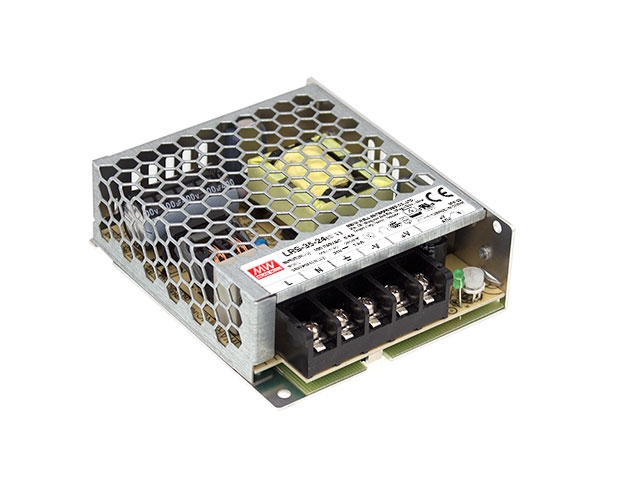

MEAN WELL LRS-35-5
MEAN WELL LRS-35-5

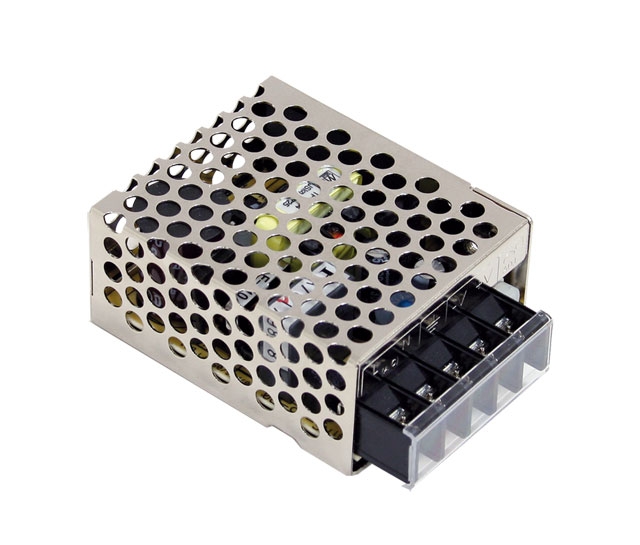

MEAN WELL RS-15-12

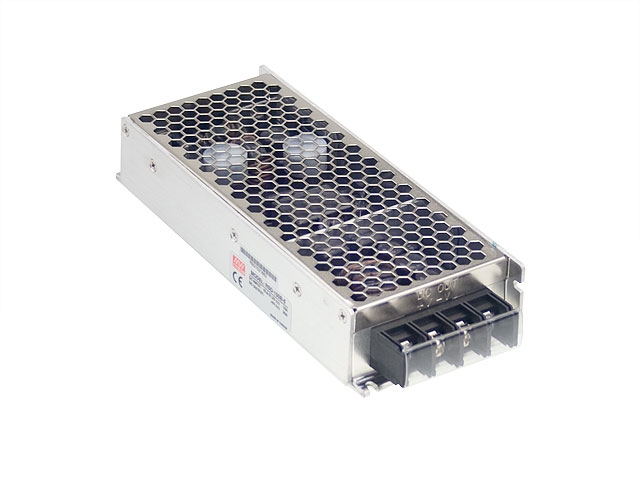

MEAN WELL RSD-150B-5
MEAN WELL RSD-150B-5

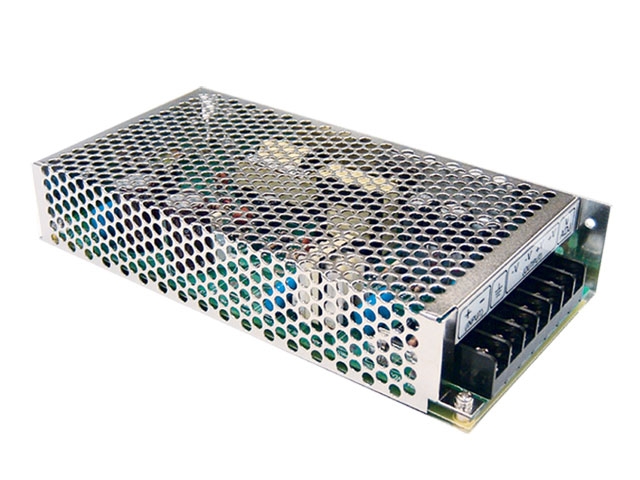

MEAN WELL SD-100B-5

Universal AC input / Full range
Cooling by free air convection
Power good signal output(Optional)
100% full load burn-in test
Fixed switching frequency: 45KHz

Full Range Universal AC Input
Withstands 300VAC Surge for 5 Secs
Minitaure Size with 1U Low Profile
High Operating Temerature
Low No Load Power Consumption
Withstands 5G Vibration Test
Cooling by Free Air Convection



100% full burn in test
No load power consumption


Output Type
Dual
Single
Single
Single
Single
Single
Single
Dimming / Control Options
N/A
N/A
N/A
N/A

Input Type
Single Phase
Single Phase
Single Phase

4:1 Wide Input
No
No
No
Input Current
1.5A / 230VAC
0.42A / 230VAC
0.42A / 230VAC
0.25A / 230VAC
7.3A/24V
3.6A/48V
2.4A/48V
Output Voltage
CH1: 5V, CH2: 12V
12V
36V
12V
24V
5V
24V
Output Current
CH1: 5A, CH2: 6.5A
3A
1A
1.3A
0 ~ 6.3A
0 ~ 30A
0 ~ 4.2A
Rated Output Power
103W
36W
36W
15.6W
151.2W
150W
100.8W
I/O Isolation (VDC)
4000VDC
4000VDC
1500VDC
Output Current Adjustment Range
N/A
N/A
N/A
N/A

Auxiliary Power
N/A
N/A
N/A
N/A

Current Sharing
N/A
N/A
N/A

Alarm Signals
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Remote Functions
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Control Options
N/A
N/A
N/A

Prescribed Electrical Item
No
No
No
No
No
No
No
SELV
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Efficiency
75.00%
86.00%
88.00%
81.00%
90.00%
90.00%
81.00%
Operating Temperature Range
-10 ~ +50ºC ,60ºC with cooling fan (Refer to "Derating Curve" in Data Sheet)
-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet)
-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet)
-20 ~ +70ºC (Refer to "Derating Curve" in Data Sheet)
-40 ~ +55ºC (no derating) ; +70ºC @ 60% load by free air convection ; +70ºC no derating with external base plate, TX class compliance
-40 ~ +55ºC (no derating) ; +70ºC @ 60% load by free air convection ; +70ºC no derating with external base plate, TX class compliance
-10 ~ +60ºC (Refer to "Output Load Derating Curve" in Data Sheet)
Warranty
2 Years
3 Years
3 Years
3 Years
3 Years
3 Years
2 Years
Approvals
CE, CB, RCM
CE, CB, RCM
CE, CB, RCM
CE, CB, RCM
RCM, CE, EN50155, EN45545-2
RCM, CE, EN50155, EN45545-2
RCM, CE
IP Rating / Environmental Protection
Less than IP65
Less than IP65
Less than IP65
Less than IP65
Less than IP65
Less than IP65
Less than IP65
Dimensions
177.8*107.95*46.5mm (L*W*H)
99*82*30mm (L*W*H)
99*82*30mm (L*W*H)
62.5*51*28mm (L*W*H)
189*77*36mm (L*W*H)
189*77*36mm (L*W*H)
199*98*38mm (L*W*H)
Recommended for New Designs
No
Yes
Yes
Yes
Yes
Yes
Yes
