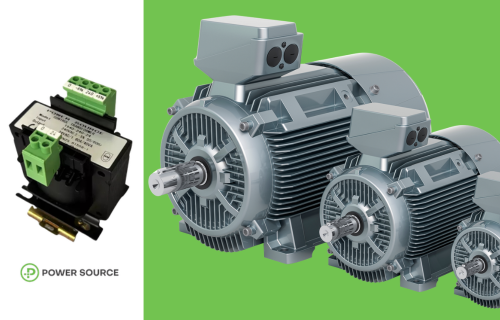

AC Transformers for Motor Control and Contactors

AC control transformers play a key role in motor control systems that require a reduced control voltage to operate contactors and related devices.

For systems with a 415 VAC supply, the transformer reduces the voltage to a standard 24 VAC control circuit. This lower voltage energises the contactor coil, enabling the main power circuit and motor starter. During pull-in, the coil experiences a brief inrush current before stabilising at a lower sealed current.

Correct transformer sizing is essential. If the transformer is undersized, the control voltage may drop too far when the contactor pulls in, leading to unreliable operation or chatter. If the transformer is incorrectly selected for the application, the contactor may not operate as intended and control components may be subjected to unnecessary stress, leading to potential breakdowns.

Our Power Source TX AC transformers provide a cost-effective solution, with robust construction and reliable performance to meet the inrush demands of contactor operation.

Learn more about the Power Source AC Transformer range.

If you need assistance selecting an AC transformer for your motor application, our team is ready to help. Contact us through our website here or call 1300 263 467.
