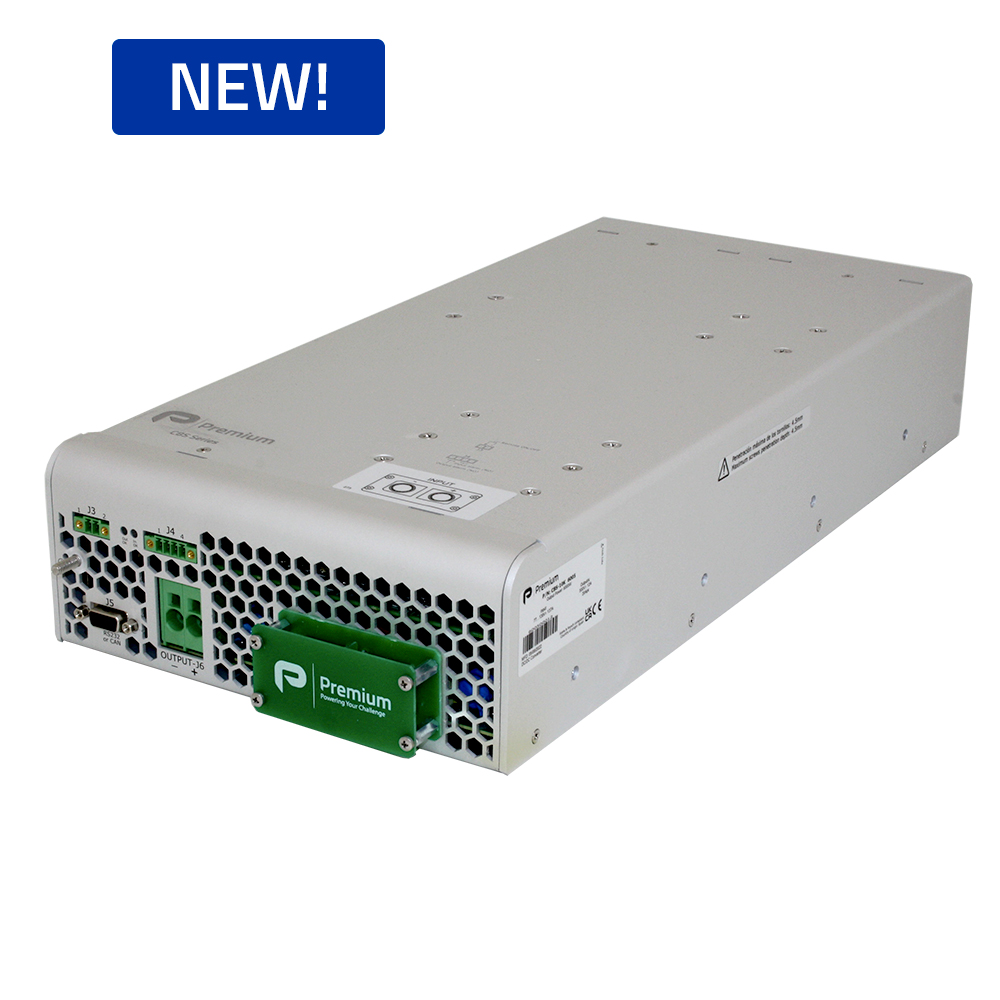

High-Powered Railway DC to DC Converter Available from ADM – Premium PSU CBS-10K DC to DC Converter

The CBS-10K DC-DC Converter is now available for order from ADM.

This range of high-powered, single-output DC/DC converters is designed for railway operations, particularly for assisting in supplying the onboard rectifier to operate as an inverter to crank the diesel train engine. This is enabled by the CBS-10K peak power capability, which can ramp to 10kW for 40 seconds, providing power for engine ignition.

The CBS-10K offers options for 24VDC, 48VDC, 72VDC, and 110VDC, each with a power rating up to 10,000W, except the 24VDC, which produces 5200W. This model can output 500 VDC, with a 700 VDC model available upon special request.

The CBS-10K provides exceptionally high galvanic isolation (5000 Vrms), insulating onboard train electronics from high-voltage surges. Additionally, the CBS-10K is certified to EN50155 and EN45545-2.

These DC-to-DC converters also feature RS232, with additional options for CANBUS communication, enabling users to program input/output alarms and remotely monitor the unit's condition.

The CBS-10K features onboard cooling via an internal fan and can remain operational between -25°C and +55°C at full load.

If you’d like to learn more about the CBS-10K by Premium PSU, send any questions to the ADM team at our contact page here or call the team directly on 1300 236 467.
