The Dangers of Frequency Mismatches: Operating 60Hz Transformers on 50Hz Grids

Can you run a 60 Hz transformer on 50 Hz?

Usually not at full voltage. A transformer designed for 60 Hz will often run hotter at 50 Hz because the lower frequency increases core flux density, which can push the transformer toward saturation.

What is saturation?

Saturation occurs when the transformer core’s magnetic material cannot support any more flux for the applied voltage and frequency; beyond that point, additional voltage produces a large increase in magnetising current instead of proportional flux. When a core approaches saturation, the magnetising current rises sharply, generating excess heat, increasing losses, and risking distortion or damage to the windings and supply. Keeping flux below saturation (by reducing applied voltage when frequency is lower) prevents these outcomes.

What is the risk?

The main risk is excess heating. That can reduce insulation life, increase losses, and shorten the transformer’s service life.

Will it still work?

Sometimes, yes — but only if it is properly derated or the input voltage is reduced to suit the lower frequency. The safe operating range depends on the transformer design.

What is the rule of thumb?

If the frequency drops, the applied voltage usually needs to drop as well. Always check the manufacturer’s frequency rating before using the transformer on a different supply frequency.

Need an alternative solution?

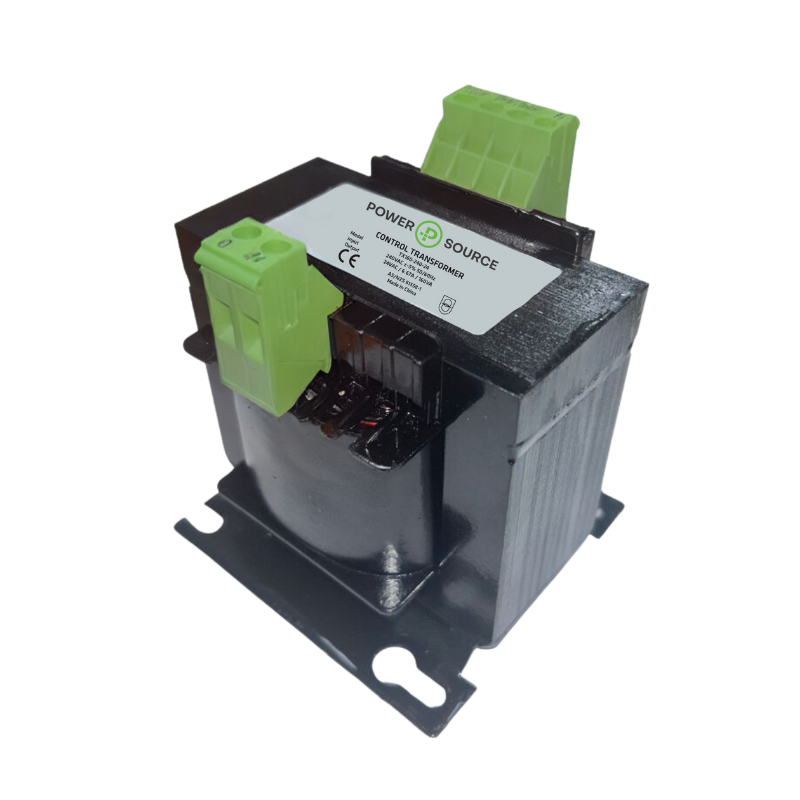

If you have a 60Hz AC transformer, it might not be the ideal power supply for electronics designed for Australia’s main power. If you’d like to explore the Power Source TX series, designed for standard 50Hz Australian cycles. The TX series is a control AC transformer that steps up or down the input-to-output voltage, making it a good fit for your intended application. The TX series is designed with galvanic isolation and can also be used for applications requiring 1:1 input-to-output ratios, providing a clean output from the source.

The TX range can accommodate input voltages of 240VAC and 415VAC, converting to 12VAC, 24VAC, 240VAC, and 415VAC, with power output ratings from 40VA to 2500VA.

If you have any questions, the ADM team is here to help! Send any questions via our contact page here or call the team directly on 1300 236 467.
